Beyond the Basics: Why Molded Case Circuit Breakers (MCCBs) Are the Backbone of Industrial and Commercial Safety

When we talk about electrical safety, most people picture the standard miniature circuit breakers (MCBs) found in home distribution panels. But step into a factory, a high-rise building, or a large commercial complex, and you enter a different world—one where currents can reach hundreds or thousands of amperes, and the margin for error is virtually zero.

In these demanding environments, Molded Case Circuit Breakers (MCCBs) are the unsung heroes. They are the robust, reliable workhorses that protect critical equipment, ensure operational continuity, and safeguard lives.

At [Your Brand Name], we combine traditional ruggedness with modern innovation. Today, we’ll explore what makes MCCBs indispensable, how to choose the right one, and how they integrate with smart systems to provide next‑level protection.

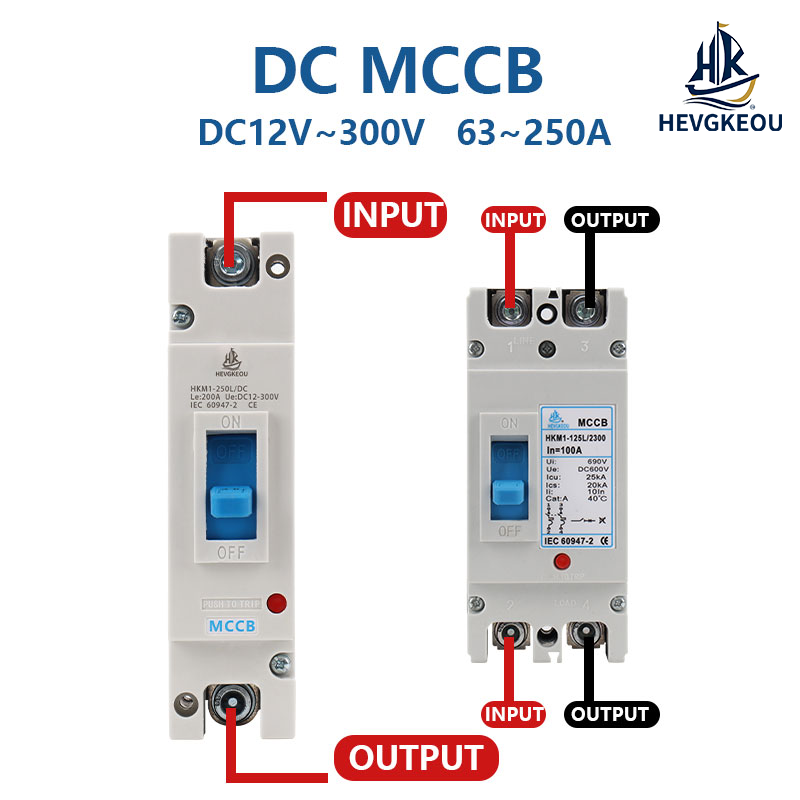

What Is a Molded Case Circuit Breaker (MCCB)?

An MCCB is a type of electrical protection device designed for higher current ratings than standard MCBs. While MCBs typically handle up to 125A, MCCBs cover a range from 10A up to 1600A or more.

The “molded case” refers to the durable, insulated housing that encloses all internal components—contacts, arc extinguishers, and trip units. This design provides excellent mechanical strength, insulation, and environmental protection, making MCCBs suitable for harsh industrial environments.

Key Features That Set MCCBs Apart

1. Adjustable Trip Settings – Precision Protection

Unlike fixed‑trip MCBs, most MCCBs allow you to adjust the protection parameters to match the exact characteristics of the load. Common adjustments include:

• Ir (Long‑Time Pickup): Sets the continuous current rating. If your motor draws 400A normally, you can set the breaker to trip only when current exceeds that threshold for a sustained period.

• Isd (Short‑Time Pickup): Adjusts the delay for moderate overloads, allowing for temporary surges (like motor starting) without nuisance tripping.

• Ii (Instantaneous Pickup): Sets the level for immediate tripping during severe short circuits.

This flexibility ensures that the breaker protects the wiring and equipment without interrupting operations unnecessarily—a critical advantage in industrial settings.

2. High Interrupting Capacity – Handling the Big Faults

When a short circuit occurs in a high‑power system, the fault current can be enormous—tens of thousands of amperes. An MCCB is rated for its interrupting capacity (Icu or Ics) , which indicates the maximum fault current it can safely clear without being destroyed.

• Icu (Ultimate Short‑Circuit Breaking Capacity): The maximum fault current the breaker can interrupt once.

• Ics (Service Short‑Circuit Breaking Capacity): The fault current it can interrupt multiple times and still be usable afterward.

Choosing an MCCB with adequate interrupting capacity is essential for safety. Undersizing can lead to catastrophic failure—even explosion—during a fault.

3. Thermal‑Magnetic vs. Electronic Trip Units

MCCBs come with different trip unit technologies to suit various applications:

• Thermal‑Magnetic: The traditional choice. A bimetallic strip provides overload protection (thermal), while an electromagnetic coil provides instantaneous short‑circuit protection (magnetic). Simple, reliable, and cost‑effective.

• Electronic (Solid‑State): Offers precise, programmable protection. Electronic trip units allow fine‑tuning of all parameters, often include ground‑fault protection, and can communicate with monitoring systems. They are ideal for applications requiring selective coordination and data visibility.

Where Are MCCBs Used?

MCCBs are the backbone of protection in:

• Industrial Plants: Main feeders, motor control centers (MCCs), welding equipment, large HVAC systems.

• Commercial Buildings: Main distribution boards for office towers, shopping malls, data centers.

• Infrastructure: Pump stations, wastewater treatment plants, transportation hubs.

• Renewable Energy: Solar combiner boxes, battery storage systems, EV charging stations.

• Residential (High‑End): Large villas with high‑power equipment like swimming pool pumps, workshops, and backup generator systems.

The Evolution: MCCBs Meet the Smart Grid

While MCCBs are traditionally “dumb” devices, modern versions are becoming intelligent. At [Your Brand Name], we offer MCCBs that can integrate with your existing smart infrastructure:

• Communication Capabilities: Some electronic trip units support Modbus, RS‑485, or other protocols, allowing them to communicate with smart meters, PLCs, and building management systems (BMS).

• Remote Monitoring: When paired with our smart metering and communication modules, you can monitor MCCB status—trip events, current readings, temperature—from a central dashboard.

• Selective Coordination: In complex power systems, selective coordination ensures that only the breaker closest to a fault trips, keeping power to the rest of the facility. Smart MCCBs with adjustable settings and communication make achieving coordination easier.

MCCBs vs. MCBs: A Quick Comparison

Choosing the Right MCCB: 4 Key Factors

When selecting an MCCB for your project, consider:

1. Load Current (In): The continuous current the breaker will carry. Select a frame size and rating that comfortably covers the expected load with room for future expansion.

2. Interrupting Capacity (Icu/Ics): Calculate the available fault current at the installation point. The MCCB’s interrupting rating must exceed this value.

3. Trip Unit Type: Choose thermal‑magnetic for straightforward applications; choose electronic if you need adjustable settings, ground‑fault protection, or communication.

4. Pole Configuration: MCCBs are available in 3‑pole (three‑phase) or 4‑pole (three‑phase + neutral) configurations, depending on your system requirements.

Conclusion

Molded Case Circuit Breakers are far more than just “bigger breakers.” They are engineered for the demands of high‑power environments, offering adjustable protection, high fault‑clearing capability, and—in their latest incarnations—intelligence that bridges the gap between traditional protection and modern energy management.

At [Your Brand Name], we offer a comprehensive range of MCCBs, from rugged thermal‑magnetic models to advanced electronic units with communication capabilities. Combined with our smart meters, transfer switches, and fire suppression systems, we can help you build a power distribution system that is both robust and intelligent.

Whether you are upgrading an industrial facility, designing a new commercial building, or simply need reliable protection for high‑power equipment, contact us today to find the right MCCB for your application.

---

Frequently Asked Questions

• Q: Can an MCCB be used as a main switch for a residential home?

  • A: Yes, for larger homes or properties with high‑power equipment (EV chargers, workshops, pools), an MCCB is often used as the main incoming breaker. However, for standard residential panels, MCBs are usually sufficient.

• Q: Are MCCBs reusable after a trip?

  • A: Yes, if the breaker trips due to an overload or a fault that is within its interrupting rating, it can be reset (after clearing the fault) and reused. However, after clearing a very high fault current, it is recommended to inspect and test the breaker to ensure it remains within specification.

• Q: Can I monitor an MCCB remotely?

  • A: With electronic trip units that support communication protocols (Modbus, etc.), and by using auxiliary contacts or communication modules, you can monitor status, current, and trip events remotely. Contact us to explore smart MCCB options.

• Q: What is the difference between a fixed and adjustable MCCB?

  • A: A fixed MCCB has factory‑set trip parameters and cannot be adjusted. An adjustable MCCB allows you to set the long‑time, short‑time, and instantaneous trip thresholds to match specific loads—essential for motor circuits and selective coordination.
