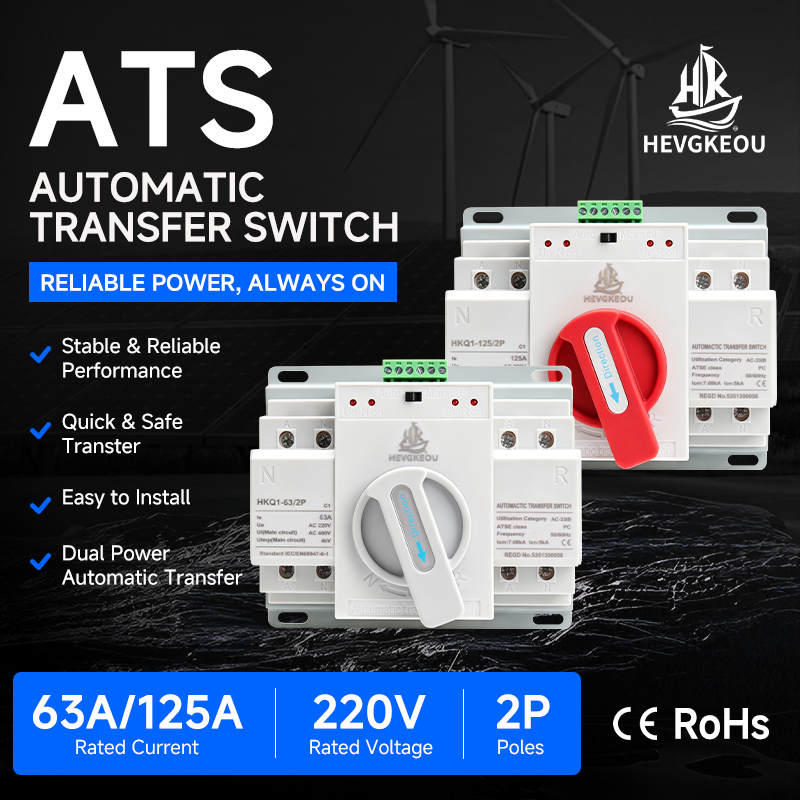

What is an Automatic Transfer Switch (ATS)? Working Principle, Types, and Applications
Share
An Automatic Transfer Switch (ATS), also known as a Dual Power Automatic Transfer Switch, is an essential device in modern power systems. It automatically switches the load between two power sources—typically the main power supply and a backup generator—ensuring continuous and reliable power supply.
ATS is widely used in industrial, commercial, and critical infrastructure applications where power interruption is not acceptable.
1. What is an Automatic Transfer Switch (ATS)?
An ATS is an electrical switching device that automatically transfers the load from one power source to another when the primary source fails or becomes unstable.
In simple terms:
When main power fails → ATS switches to backup power automatically
When main power restores → ATS switches back automatically
This process happens within seconds or even milliseconds depending on the system design.
2. How Does an ATS Work?
The working principle of ATS is based on continuous monitoring of voltage conditions.
Basic operation steps:
- ATS monitors the main power supply
- If voltage is normal → load stays on main power
- If power failure or abnormal voltage is detected → ATS starts backup generator or switches to second source
- Once backup power is stable → load is transferred automatically
- When main power returns → ATS switches back safely
3. Types of Automatic Transfer Switches
ATS can be classified into several types depending on structure and application.
3.1 Open Transition ATS (Break Before Make)
- Power is disconnected briefly before switching
- Simple structure
- Cost-effective
- Suitable for general applications
3.2 Closed Transition ATS (Make Before Break)
- Two power sources overlap briefly during transfer
- No interruption of power
- Used in critical systems
3.3 Delayed Transition ATS
- Adds a time delay before switching
- Prevents unstable switching during voltage fluctuation
3.4 Static Transfer Switch (STS)
- Uses power electronics instead of mechanical switching
- Ultra-fast transfer (milliseconds)
- Used in data centers and sensitive equipment
4. Key Components of an ATS
An Automatic Transfer Switch typically consists of:
- Power switching mechanism (contactors or breakers)
- Control controller (microprocessor-based unit)
- Voltage detection module
- Manual/automatic selector
- Mechanical interlock system
These components ensure safe and reliable switching between power sources.
5. Applications of ATS
ATS is widely used in systems where power continuity is critical.
Common applications include:
- Industrial manufacturing plants
- Hospitals and medical equipment
- Data centers and servers
- Commercial buildings
- Airports and transportation systems
- Emergency lighting systems
6. Advantages of Using ATS
Installing an ATS provides several key benefits:
1. Continuous power supply
Ensures uninterrupted operation during power failure.
2. Automatic operation
No manual intervention required.
3. Equipment protection
Prevents damage caused by sudden power loss.
4. Improved safety
Reduces risks associated with manual switching.
5. Efficient backup power utilization
Optimizes generator usage automatically.
7. How to Choose the Right ATS?
When selecting an ATS, consider the following factors:
1. Current rating
Match ATS capacity with load requirements.
2. Number of poles
- 2P / 3P / 4P depending on system design
3. Switching type
Open transition or closed transition
4. Control method
Manual, automatic, or remote control
5. Application environment
Industrial, commercial, or residential use
8. Why ATS is Important in Power Systems
Power interruptions can cause:
- Production downtime
- Data loss
- Equipment damage
- Safety risks
ATS eliminates these risks by ensuring seamless power transfer between sources.
9. Conclusion
An Automatic Transfer Switch (ATS) is a critical component in any system that requires reliable and continuous power supply. It ensures automatic switching between main and backup power sources, improving safety, stability, and operational efficiency.
For industrial and commercial users, selecting the right ATS type is essential for maintaining uninterrupted operations.
