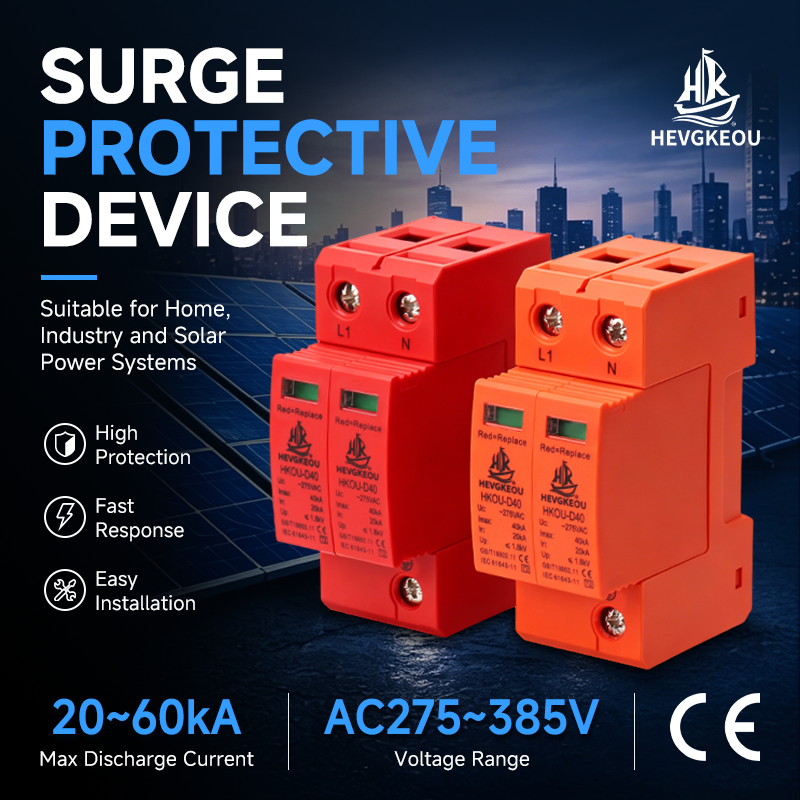

What is SPD Class I, Class II, and Class III? Complete Guide to Surge Protection Device Classification
Share
Surge Protection Devices (SPD) are essential components in modern electrical systems. They protect equipment from transient overvoltage caused by lightning strikes, switching operations, and power grid disturbances.
SPD is generally classified into Class I, Class II, and Class III according to IEC 61643 standards. Each class serves a different level of protection in the electrical system.
In this guide, we will clearly explain the differences and applications of SPD Class I, II, and III.
1. What is a Surge Protection Device (SPD)?
A Surge Protection Device (SPD) is designed to limit transient overvoltage and divert surge current safely to ground, protecting electrical equipment from damage.
Surges can be caused by:
- Lightning strikes
- Switching of heavy loads
- Power grid fluctuations
- Fault conditions
Without SPD, sensitive equipment such as PLCs, control panels, and industrial machines can be severely damaged.
2. What is SPD Class I?
SPD Class I is designed for direct lightning protection.
Key Features:
- Handles high surge current (partial lightning current)
- Installed at the main incoming power supply
- Tested with waveform 10/350 μs
- Requires lightning protection system (LPS)
Applications:
- Industrial buildings
- High-rise buildings
- Facilities with external lightning protection systems
Function:
Class I SPD absorbs the first impact of lightning energy and safely discharges it to ground.
3. What is SPD Class II?
SPD Class II is designed for indirect surge protection.
Key Features:
- Protects against switching surges and residual lightning energy
- Installed in distribution panels
- Tested with waveform 8/20 μs
- Most commonly used SPD type
Applications:
- Residential buildings
- Commercial buildings
- Industrial control systems
Function:
Class II SPD reduces remaining surge energy after Class I protection or in areas without direct lightning risk.
4. What is SPD Class III?
SPD Class III provides final stage protection for sensitive equipment.
Key Features:
- Low discharge capacity
- High precision protection
- Installed close to end-use equipment
- Often integrated in power strips or device-level protection
Applications:
- PLC systems
- Computers and servers
- Communication equipment
- Sensitive industrial electronics
Function:
Class III SPD protects against small residual surges that pass through upstream protection devices.
5. SPD Protection Coordination (Class I + II + III)
In a complete protection system, SPD devices work together in a cascade:
- Class I SPD → absorbs direct lightning energy
- Class II SPD → suppresses residual surge
- Class III SPD → protects final sensitive equipment
This is known as a coordinated protection system, widely used in industrial and commercial power systems.
6. How to Choose the Right SPD Class?
Choosing the correct SPD depends on:
1. Building type
- Industrial → Class I + II recommended
- Commercial → Class II + III
- Residential → Class II or III
2. Exposure risk
- High lightning area → Class I required
- Normal area → Class II sufficient
3. Equipment sensitivity
- PLC / automation → Class III essential
7. Why SPD Classification Matters
Using the wrong SPD type may result in:
- Equipment damage
- System downtime
- Financial loss
- Fire risk in extreme cases
Proper SPD selection ensures:
- Stable power system
- Longer equipment lifespan
- Reduced maintenance cost
8. Conclusion
SPD Class I, II, and III are not competing products—they are different layers of a complete surge protection system.
To achieve maximum protection, it is recommended to use a coordinated system based on your application environment and equipment sensitivity.
If you are selecting SPD for industrial or commercial projects, understanding these three classes is the first step toward proper electrical protection design.
