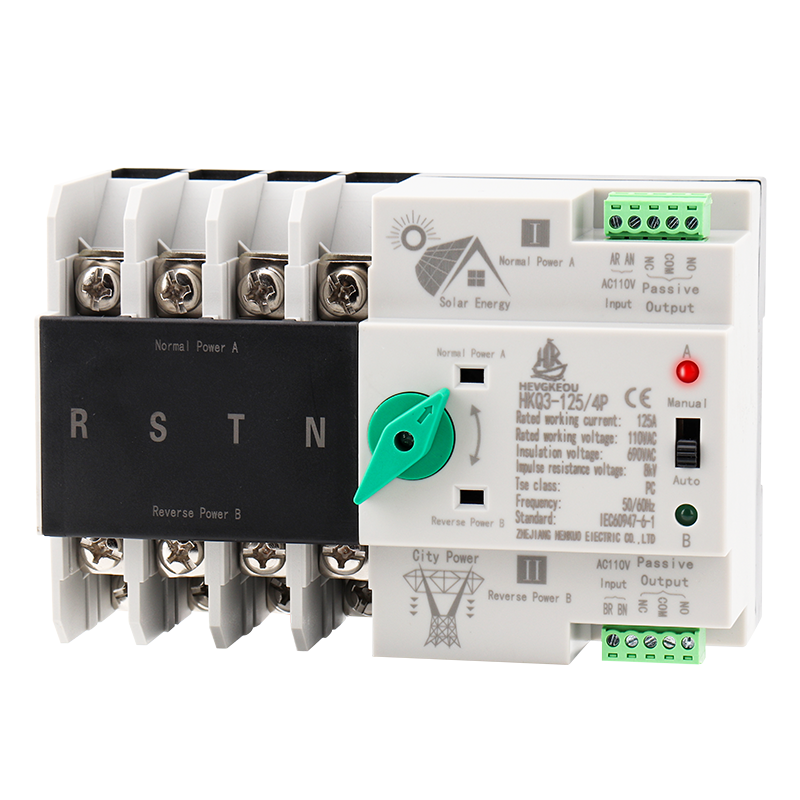

110V 4P Solar ATS | Automatic Transfer Switch for PV Systems | 125A Dual Power Changeover for Inverter/Grid/Generator

☀️ Intelligent Solar Switching for 110V Split-Phase Systems

• 4-Pole Design: Switches L1, L2, Neutral, and Ground for complete isolation.

• 125A High Capacity: Handles whole-house loads up to 12kW+.

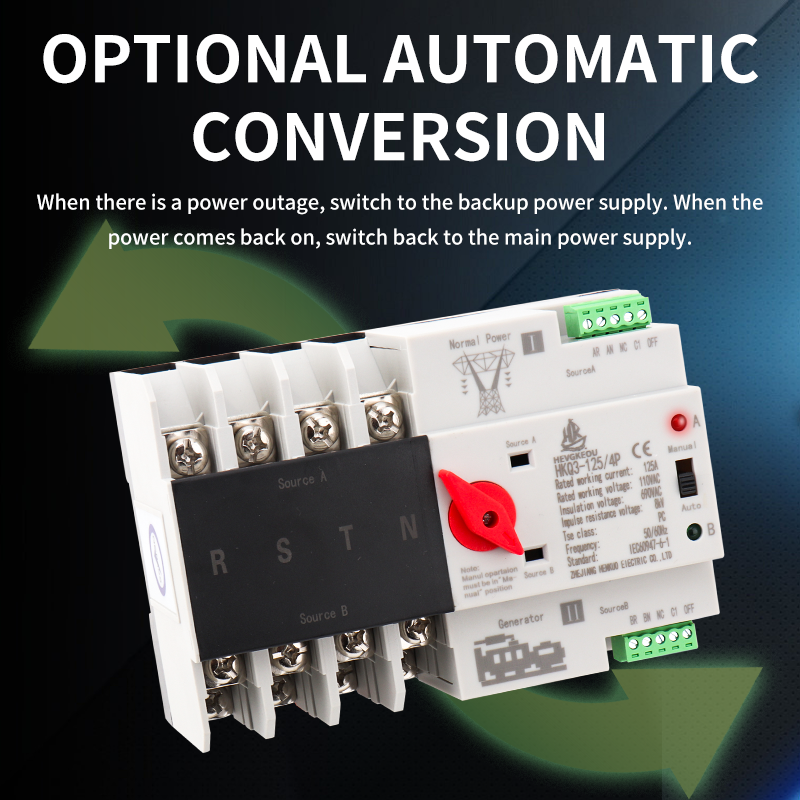

• Solar Prioritized: Automatically uses PV/battery power first, grid as backup.

• DIN Rail Mount: Clean, code-compliant installation in standard panels.

  Technical Specifications

  Specification	Detail
  Model	ATS-SOLAR-110V-4P
  Type	Automatic Transfer Switch (Solar/Optimized)
  Rated Current	125 Amps
  Rated Voltage	110/220V AC Split-Phase (120/240V compatible)
  Frequency	60 Hz
  Poles	4P (L1, L2, N, G)
  Mounting	35mm DIN Rail
  Transfer Time	< 3 seconds (adjustable)
  Generator Start	Dry contact output (requires external module on basic models)
  Wire Size	AWG 6 - 2/0 (depending on terminal)
  Compliance	UL 1008 (pending/standards based)
