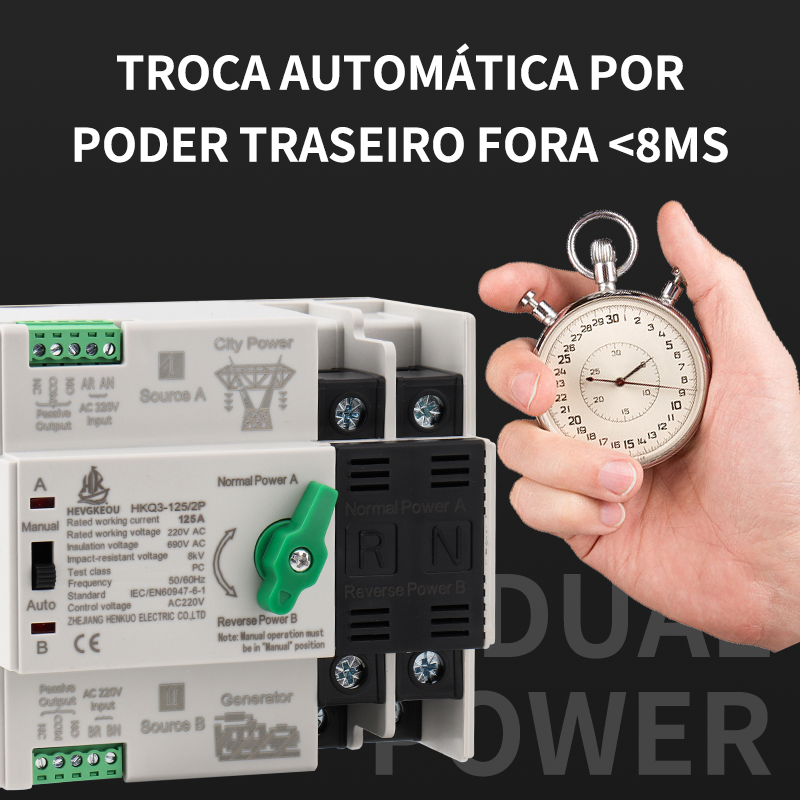

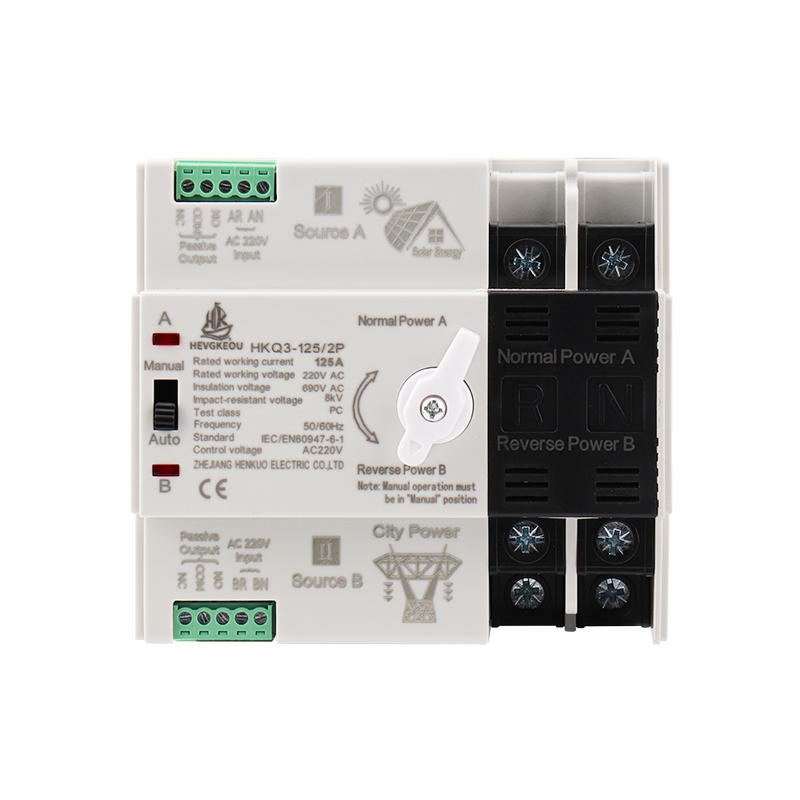

230V 125A 2P Automatic Transfer Switch (ATS) | DIN Rail | Backup Generator & Solar Transfer Switch

⚡ Automatic & Safe Power Switching for Home & Industry

• Voltage: 230V AC (Suitable for EU, ASIA, AU, UK standards).

• High Capacity: Handles up to 125A of current – perfect for full house backup.

• DIN Rail Mount: Compact design for easy installation in standard distribution boxes.

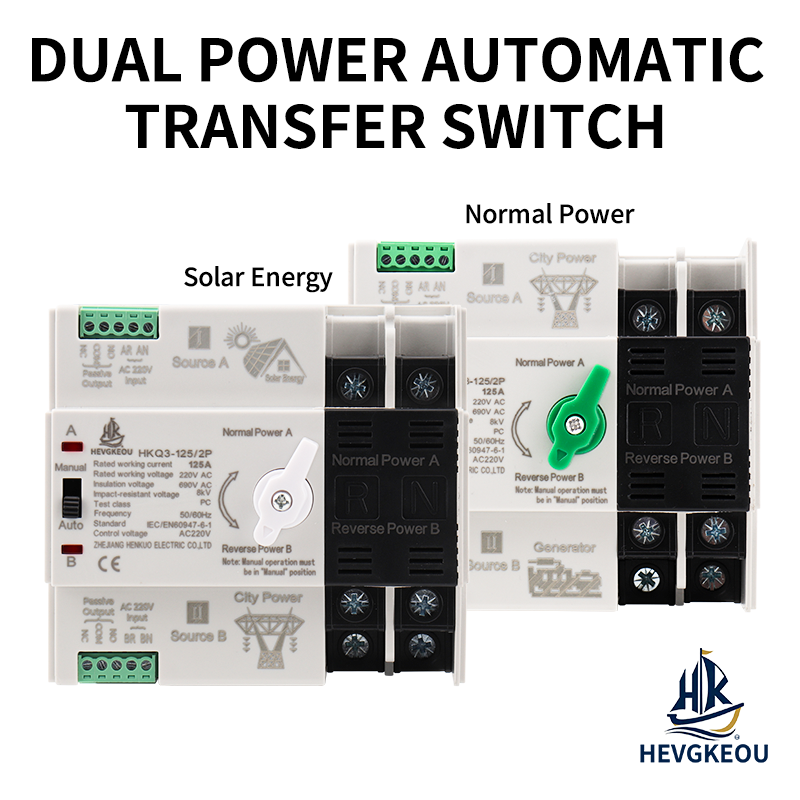

• Dual Power: Ideal for City Power / Generator / Solar Inverter switching.

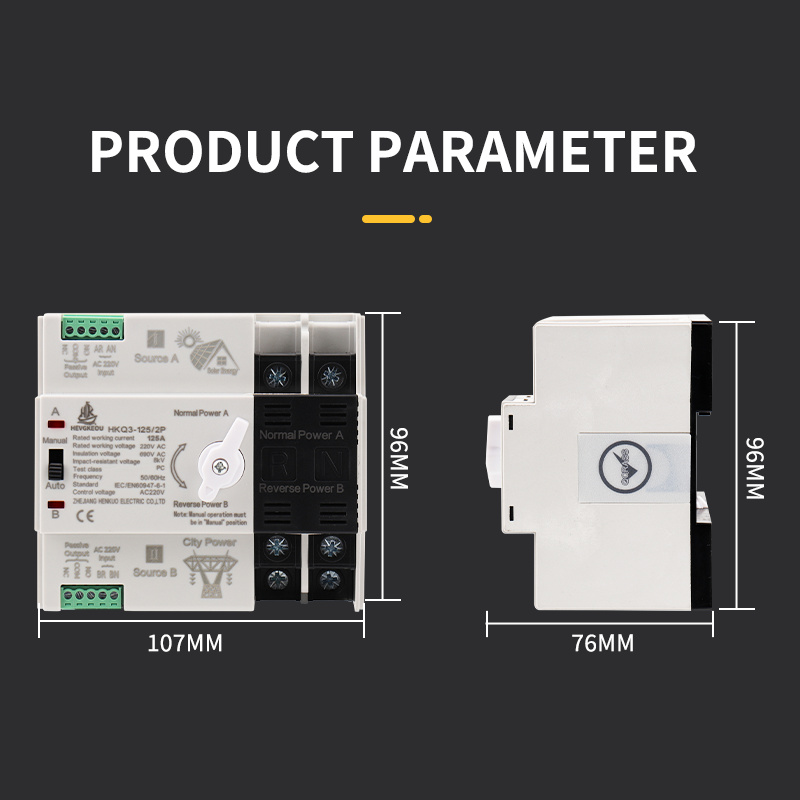

  Technical Specifications

  Specification	Detail
  Model	ATS-230V-125A-2P
  Rated Voltage	230V AC (50/60Hz)
  Rated Current	125 Amps
  Poles	2P (Double Break)
  Mounting Type	35mm DIN Rail

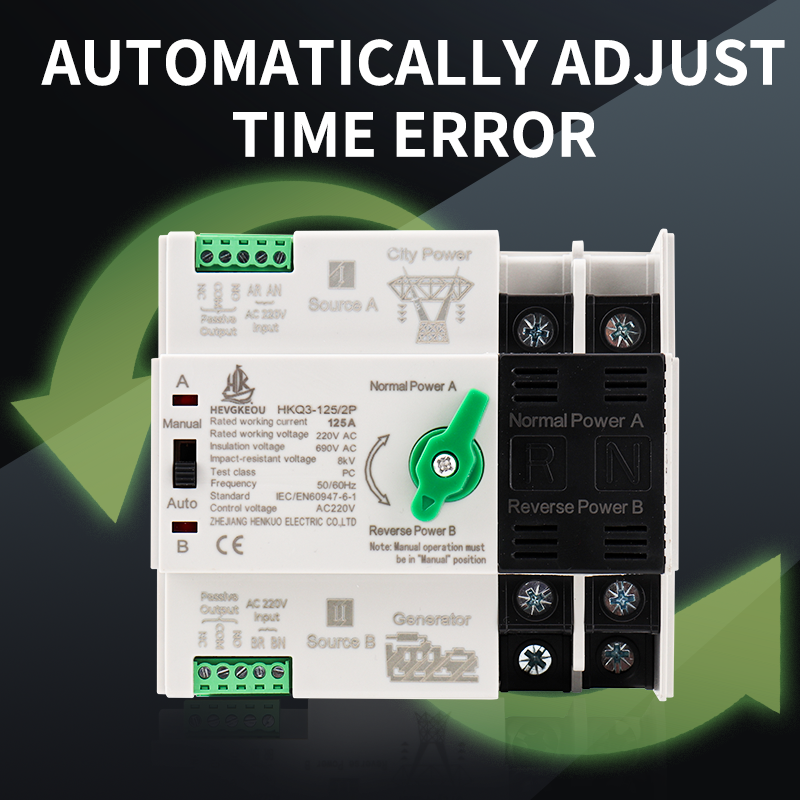

  Switching Time	≤ 3s (Adjustable on some models)
  Operating Temperature	-5°C to +40°C
  Housing Material	Flame Retardant PC/ABS
  Terminal Type	Screw Terminal (High Torque)
