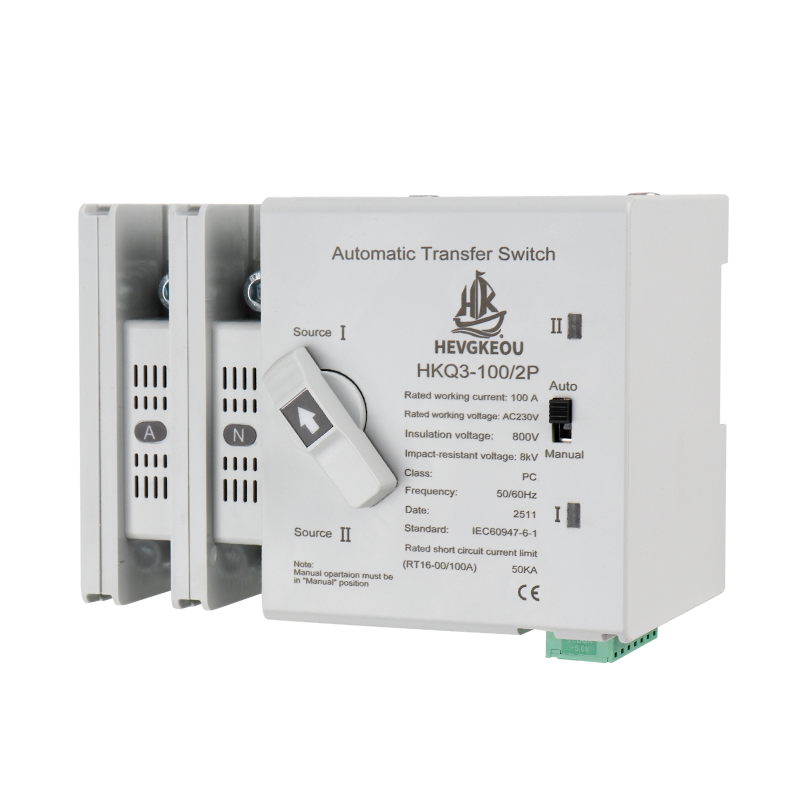

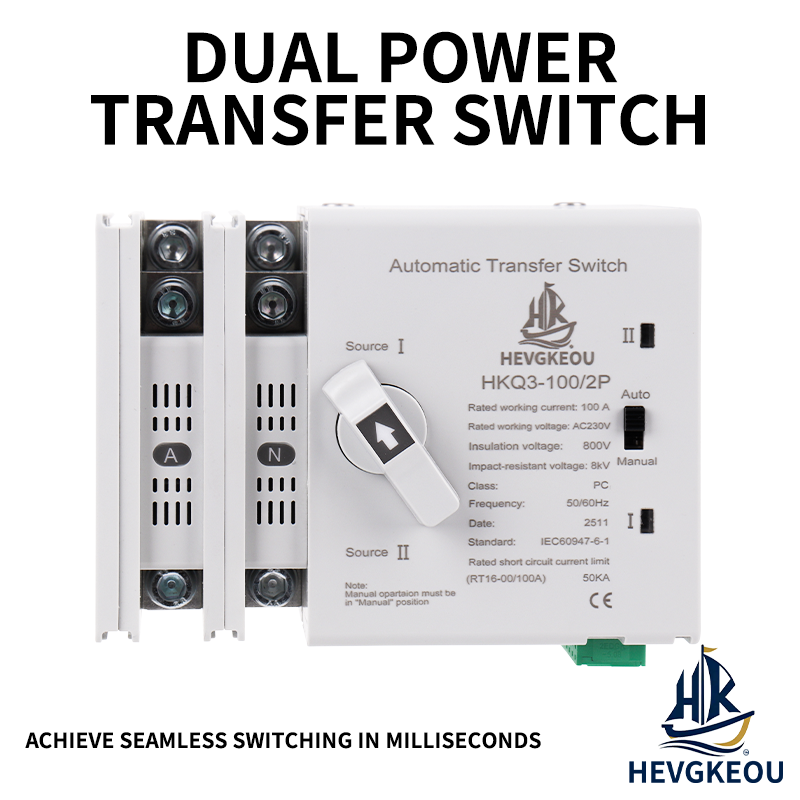

2P 100A Automatic Transfer Switch (ATS) | 230VAC Dual Power Changeover | Auto/Manual with Seamless Millisecond Switching | DIN Rail

⚡ Ultra-Fast Millisecond Switching for Critical Load Protection

• Seamless Transfer: < 50ms switching time – ideal for computers, servers, and sensitive electronics.

• 100A High Capacity: Handles whole-house loads, workshops, and commercial equipment.

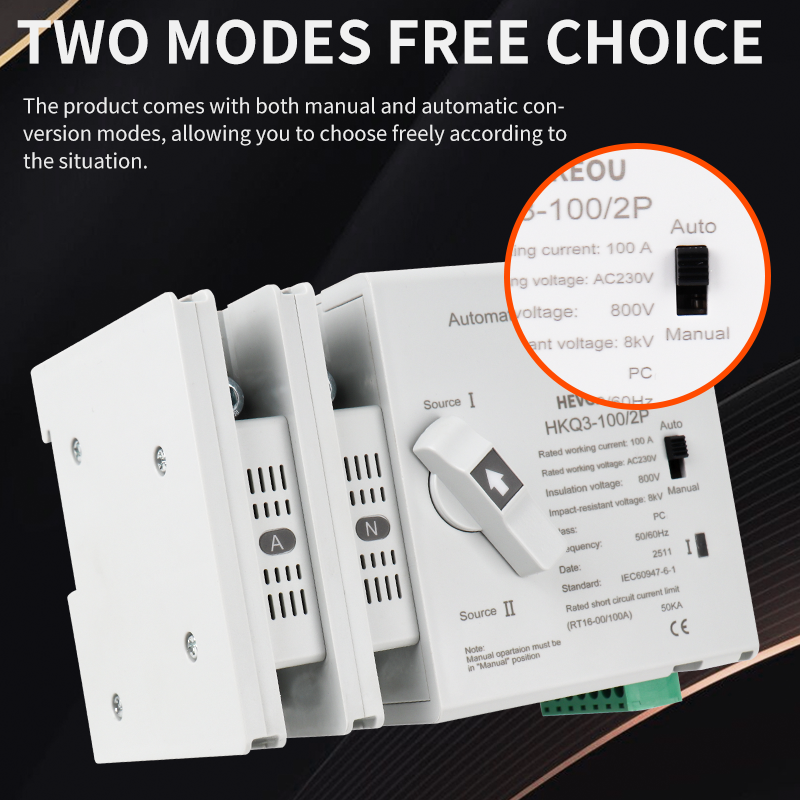

• Auto/Manual Modes: Fully automatic operation with manual override for testing and emergencies.

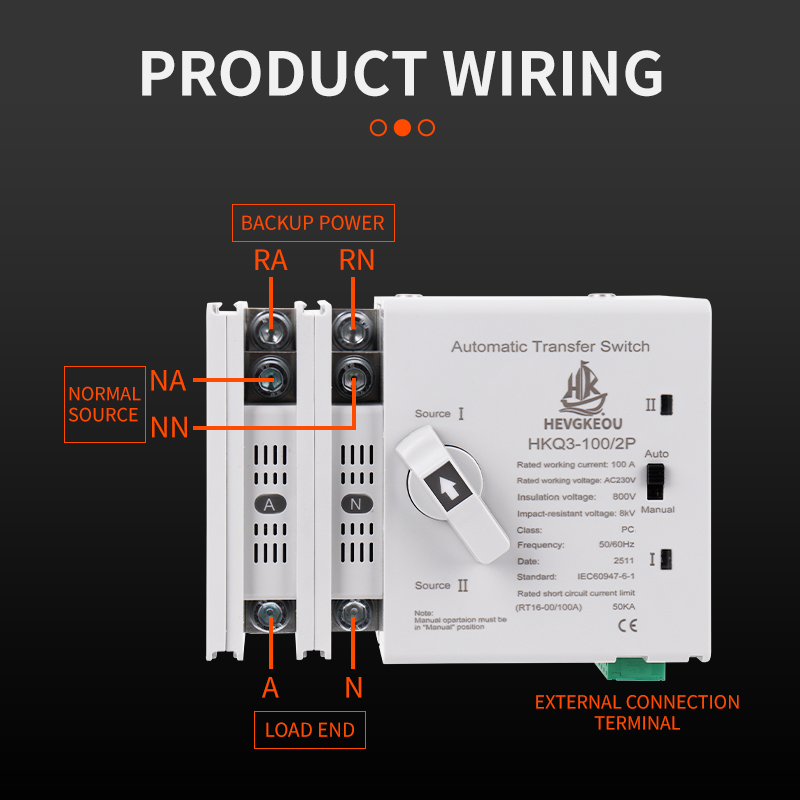

• 2P Safety Design: Switches Live + Neutral for complete isolation.

• 230VAC Compatibility: Perfect for European, Asian, Australian, and UK single-phase systems.

  Technical Specifications

  Specification	Detail
  Model	ATS-2P-100A-HS
  Type	High-Speed Automatic Transfer Switch
  Rated Current (In)	100 Amps
  Rated Voltage	230V AC (50/60Hz)
  Poles	2P (Switches L + N)
  Mounting	35mm DIN Rail
  Transfer Time	< 50 milliseconds (ultra-fast)
  Operation Modes	Auto / Manual (selector switch)
  Delay Settings	Adjustable transfer and return delays
  Monitoring	Continuous voltage and frequency sensing
  Terminal Capacity	Up to 35mm²
  Electrical Life	> 3,000 operations
  Mechanical Life	> 10,000 operations
  Operating Temperature	-5°C to +40°C
  Certification	CE
