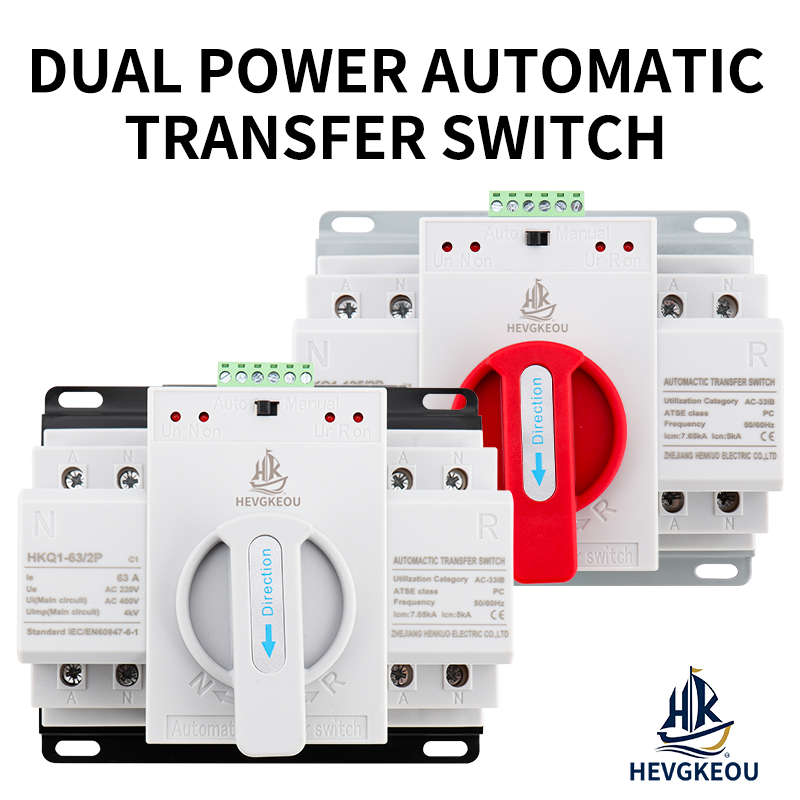

63A ATS with Built-in MCB | 2P Automatic Transfer Switch | 230V Dual Power Changeover with Circuit Breaker Protection

🔒 2-in-1 Protection: Automatic Switching + Integrated Circuit Breaker

• All-in-One Design: Combines ATS and MCB in a single unit – saves space and wiring time.

• 63A Capacity: Ideal for apartments, small workshops, lighting circuits, and sub-panels.

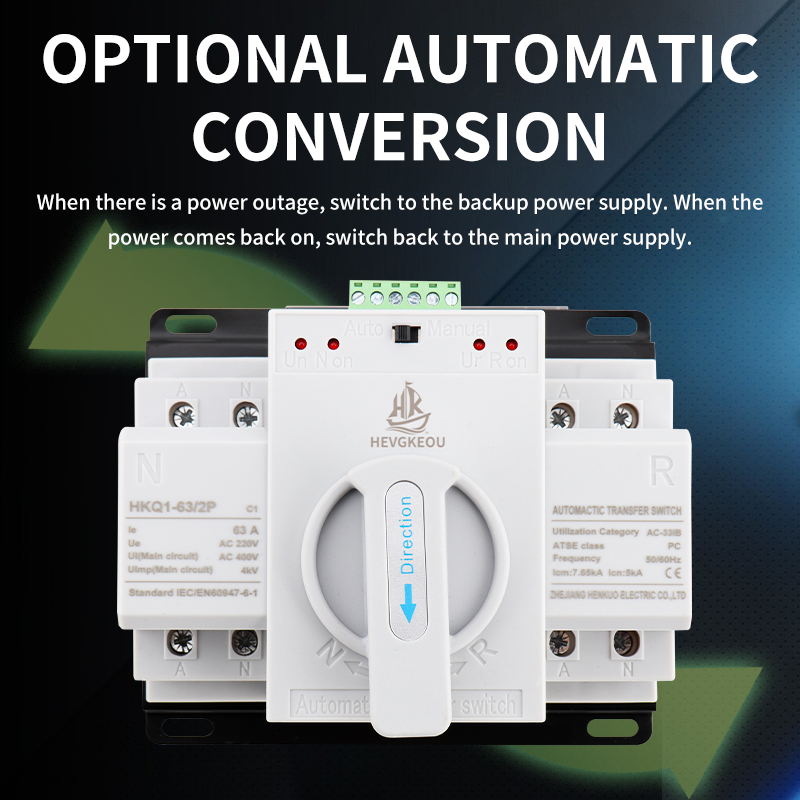

• Auto/Manual Modes: Fully automatic operation plus manual override for testing or emergencies.

• DIN Rail Mount: Plugs directly into your standard distribution board.

  Technical Specifications

  Specification	Detail
  Model	ATS-63A-2P-MCB
  Type	Automatic Transfer Switch with Integrated MCB
  Rated Current (In)	63 Amps
  Rated Voltage	230V AC (50/60Hz)
  Poles	2P (Switches L & N)
  Mounting	35mm DIN Rail
  MCB Curve	Typically C-Curve (for general loads)
  Breaking Capacity	6kA (Typical for MCB function)

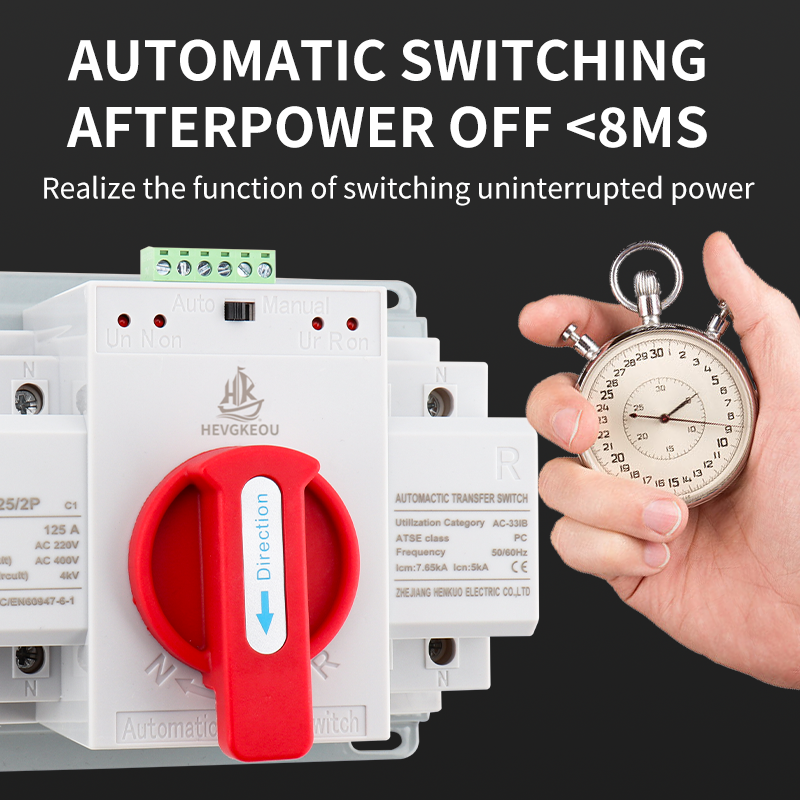

  Transfer Time	≤ 30 seconds (Auto Mode)
  Operating Modes	Auto / Manual (via external handle)
  Terminal Capacity	Up to 16mm² or 25mm² cable
  Electrical Life	> 3,000 operations
