AC Surge Protective Device (SPD) 2P 40kA A/B Type HKQE-C40/B40 275VAC Lightning Surge Arrester for Home Industrial CE Certified

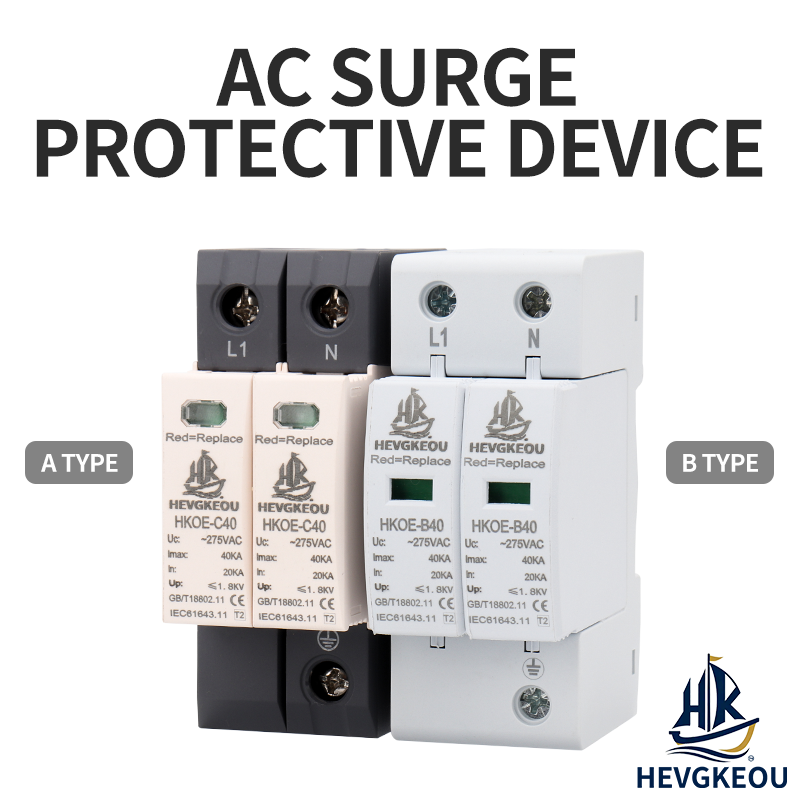

⚡ Ultimate AC Surge Protection for Home & Industry – Type 1+2 Hybrid

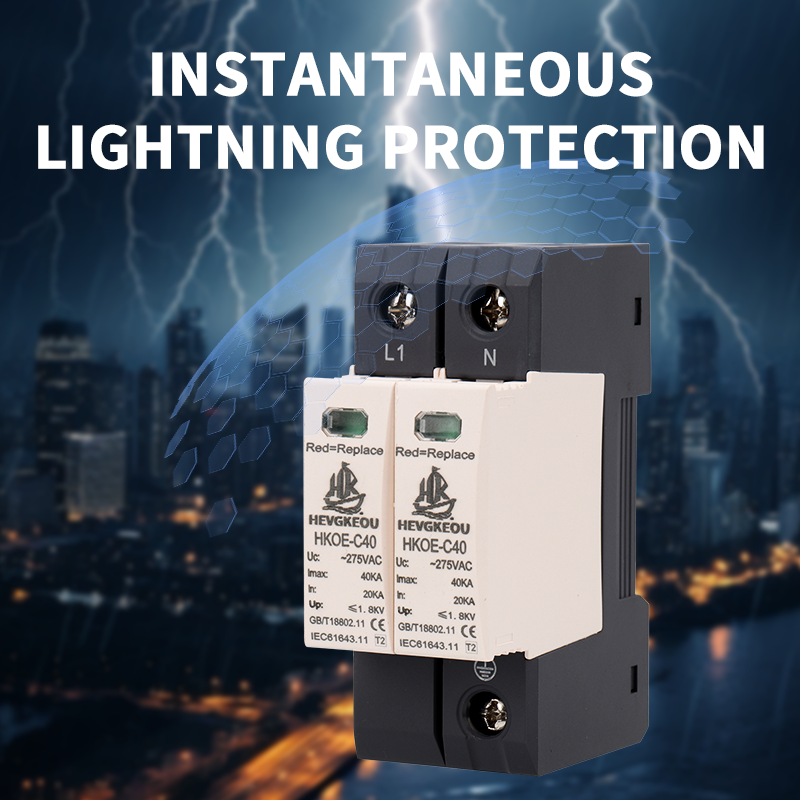

• Hybrid A/B Type (Type 1+2): Protects against both direct lightning strikes (10/350µs) and switching surges (8/20µs) in one device.

• High 40kA Surge Capacity: Handles major surge events with 20kA nominal discharge current.

• 2-Pole (2P) Design: Safeguards Live (L) and Neutral (N) for complete single-phase protection.

• 275VAC Rating: Ideal for standard 230V residential and light industrial systems (TT/TN networks).

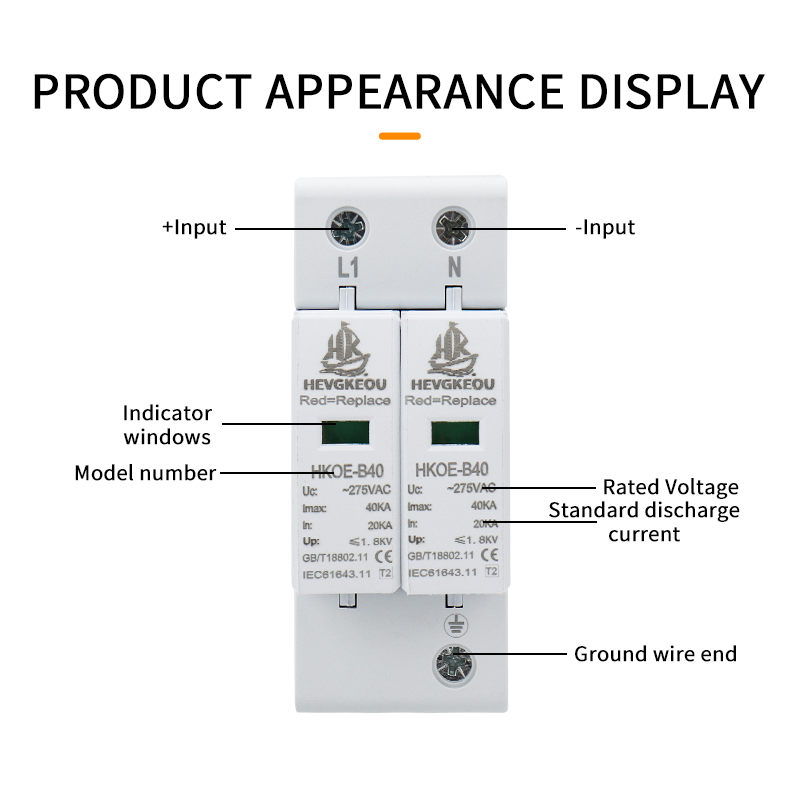

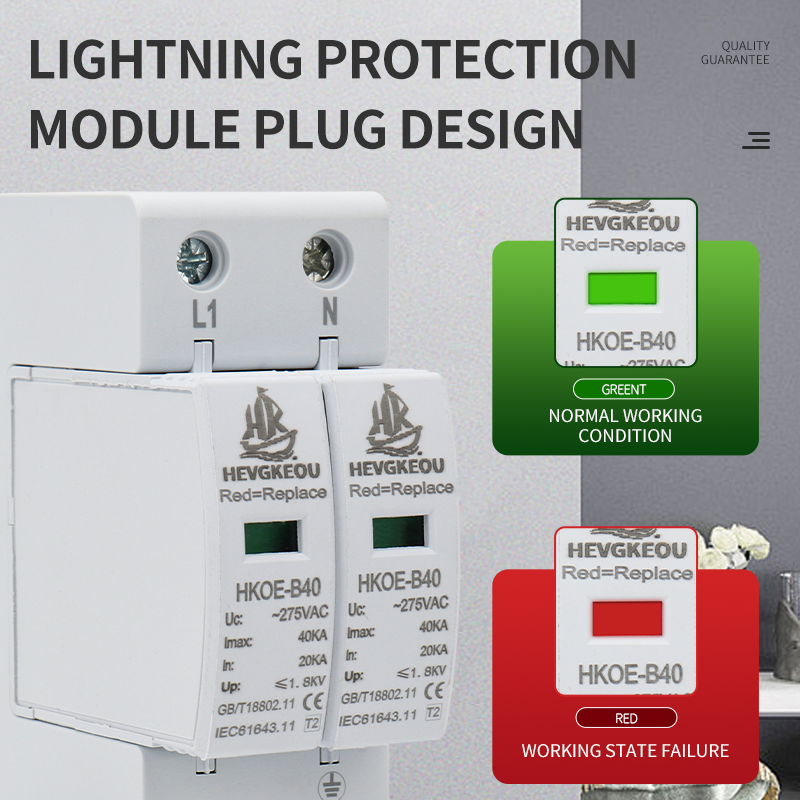

• Red=Replace Visual Indicator: Green means protected, red means replace – at-a-glance status monitoring.

• CE Certified: Meets IEC 61643-11 European safety standards.

• DIN Rail Mount: Easy installation in home distribution boards or industrial panels.

Power surges are unpredictable and destructive. Whether from a direct lightning strike, a grid switching event, or a motor starting in your facility, transient overvoltages can instantly destroy sensitive electronics or gradually degrade equipment over time.

The HEVGKEOU AC Surge Protective Device (SPD) Type HKQE-C40/B40 is a hybrid Type 1+2 (A/B) arrester engineered to provide the highest level of protection for single-phase AC systems up to 275V. It combines the high-energy handling of Type 1 (10/350µs waveform for direct lightning) with the fast response of Type 2 (8/20µs waveform for switching surges) – all in a single, compact 2-pole DIN rail module.

With a robust 40kA maximum discharge capacity, it's suitable for protecting everything from a home entertainment system to industrial control panels. The clear red=replace visual indicator ensures you always know your protection status at a glance, while CE certification guarantees compliance with international safety standards.

Whether you're an electrician installing a main panel protector or a facility manager safeguarding critical equipment, the HKQE-C40/B40 delivers reliable, maintenance-free protection for years to come.
