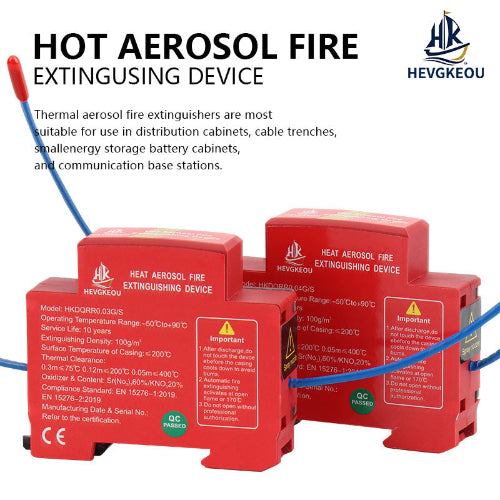

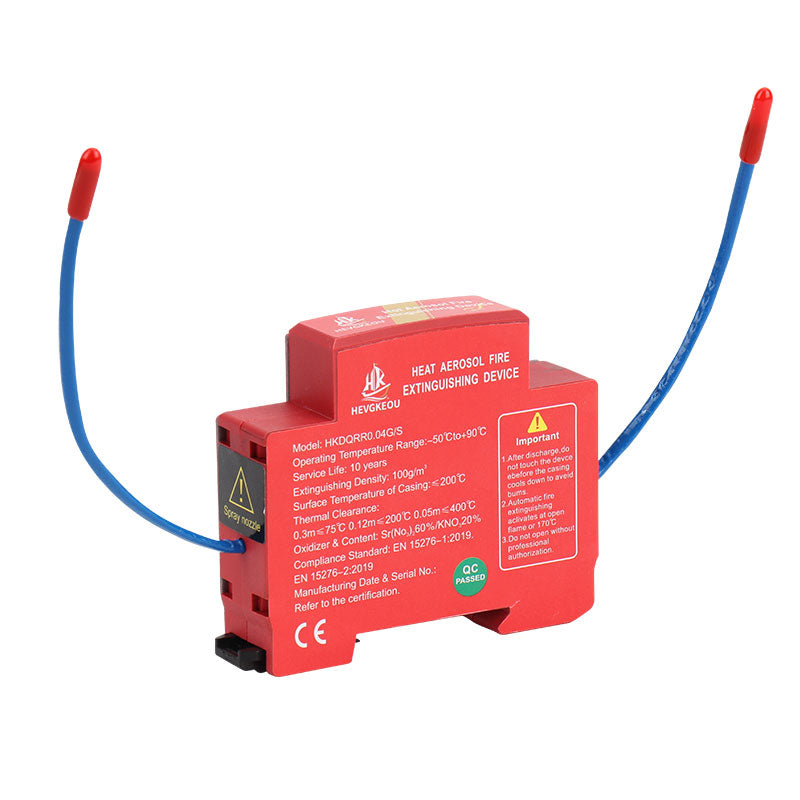

Compact N₂ Aerosol Fire Suppression Module | DIN Rail Mount for Distribution Boxes with Flame-Retardant PC Housing & Strong Adhesive

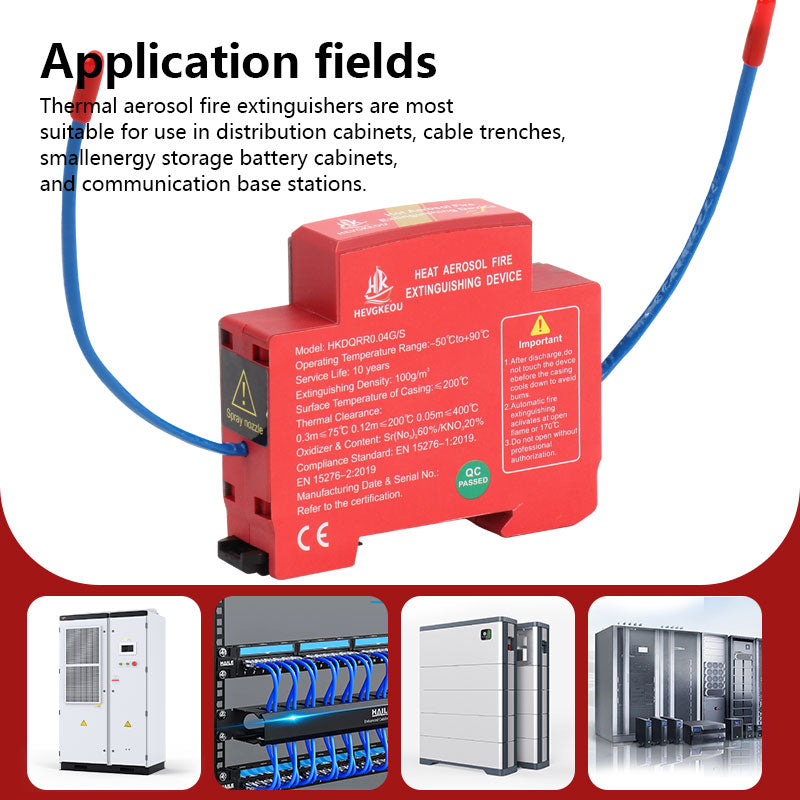

🛡️ Automatic Fire Protection for Small to Medium Electrical Enclosures

• Compact Design: Fits easily in tight spaces – ideal for distribution boards, junction boxes, and combiner boxes.

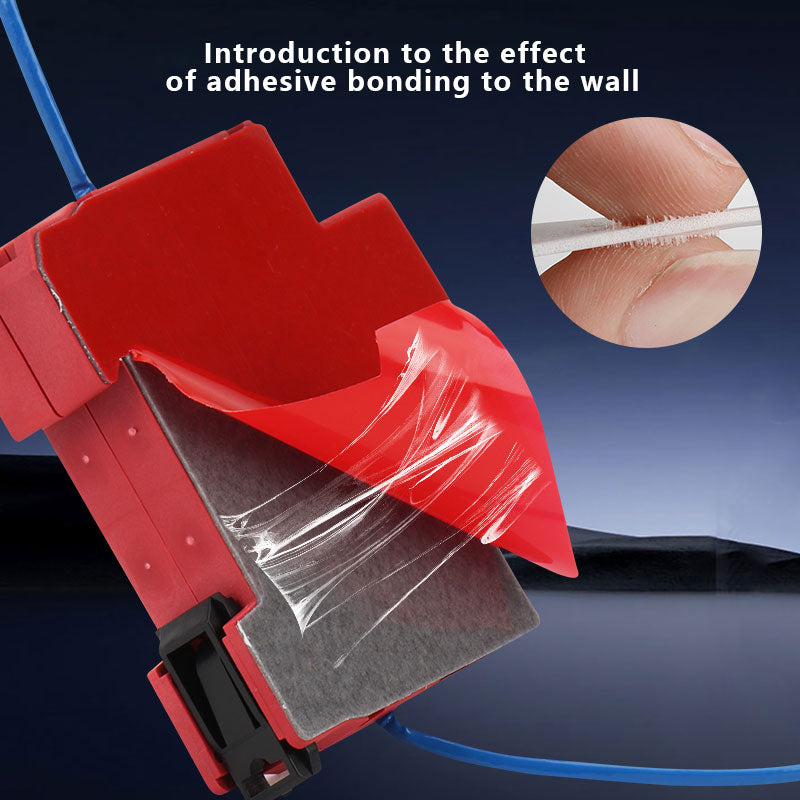

• Dual Mounting Options: 35mm DIN rail clip + industrial-strength adhesive backing.

• Flame-Retardant PC Housing: Self-extinguishing UL94 V-0 rated material.

• Clean N₂ Aerosol Technology: Non-conductive, residue-free, safe for electronics.

• Automatic 85°C Activation: No batteries, no wiring, no maintenance.

  Technical Specifications

  Specification	Detail
  Model	FIRE-AERO-COMPACT
  Form Factor	Compact rectangular / square
  Coverage Volume	Up to 0.1 m³~0.4m³ – typical for small to medium enclosures
  Extinguishing Agent	Aerosol-forming compound with N₂ propellant
  Activation Temperature	85°C ± 3°C (185°F)
  Weight	120g (approx)
  Mounting Options	35mm DIN rail clip + Industrial adhesive backing
  Housing Material	Flame-retardant Polycarbonate (UL94 V-0 rated)
  Operating Temperature	-30°C to +70°C (standby)
  Shelf Life	10 years
  Activation Time	< 10 seconds after reaching trigger temperature
  Residue Type	Minimal, non-conductive, non-corrosive
  Certification	CE
  Color	Red / Black
  Ingress Protection	IP30 (enclosure-mounted)
