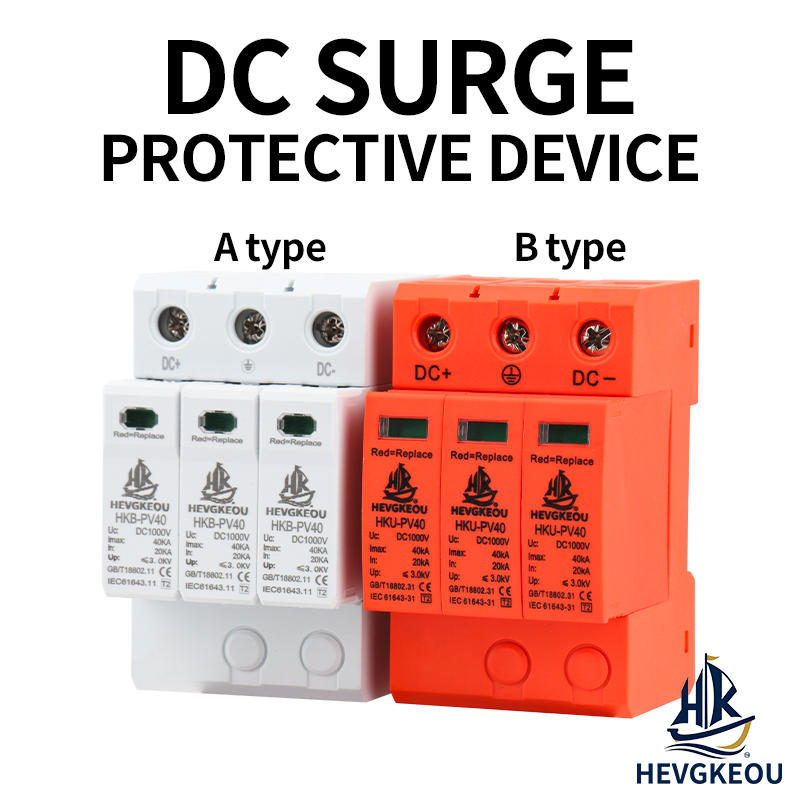

DC Surge Protective Device (SPD) Type 1+2 HKB/HKU-PV40 | 3P 40kA DC1000V Lightning Arrester for PV Systems | Red=Replace Indicator, CE Certified

☀️ Ultimate DC Surge Protection for High-Voltage Solar Arrays – Type 1+2 Combined

• Hybrid A/B Type (Type 1+2): Protects against both direct lightning strikes (10/350µs) and switching surges (8/20µs).

• 1000V DC Rating: Designed for commercial and utility-scale PV systems up to 1000V.

• 3-Pole Configuration: Protects positive (+), negative (-), and ground – complete isolation.

• 40kA Surge Capacity: High-energy dissipation for the most demanding installations.

• Red=Replace Visual Indicator: At-a-glance status monitoring – green = good, red = replace.

• CE Certified: Meets European safety standards for photovoltaic applications.

  Technical Specifications







  Specification	HKB/HKU-PV40 3P
  Model	HKB-PV40 / HKU-PV40
  Type	Type 1+2 (Class I+II / A+B)
  Application	DC side of photovoltaic systems
  Poles	3P (+, -, PE)
  Max Continuous Voltage (Ucpv)	1000V DC
  Nominal Discharge Current (In)	20kA (8/20µs)
  Max Discharge Current (Imax)	40kA (8/20µs)
  Impulse Current (Iimp)	12.5kA (10/350µs) per pole
  Voltage Protection Level (Up)	≤ 3.5kV (+, - to PE)
  Response Time	< 25 ns
  Short-Circuit Withstand	1000A DC
  Temporary Overvoltage (TOV)	1200V DC, 5 seconds
  Mounting	35mm DIN Rail
  Terminal Capacity	4-35mm² (stranded/solid)

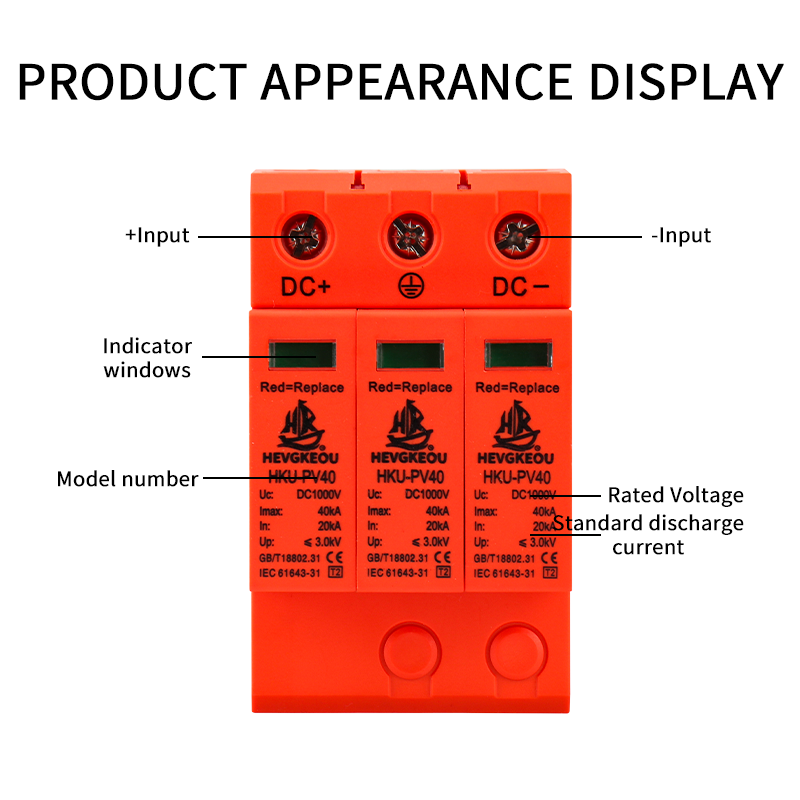

  Status Indication	Visual (Green/Red window)
  Remote Signaling	Optional (volt-free contact)
  Operating Temperature	-40°C to +80°C

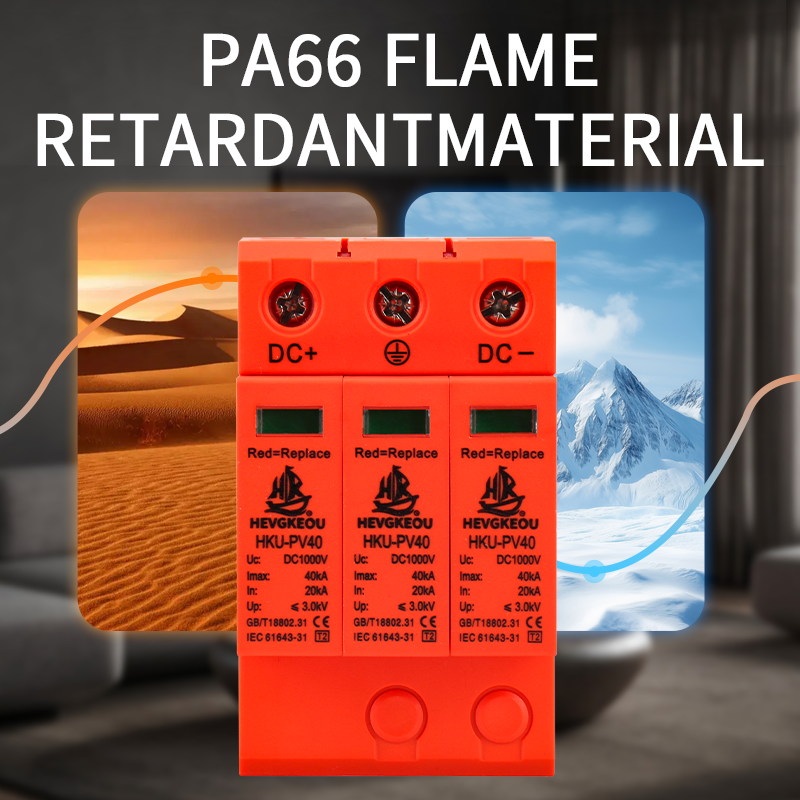

  Enclosure Material	UL94 V-0 flame-retardant PC
  Protection Rating	IP20 (finger-safe)

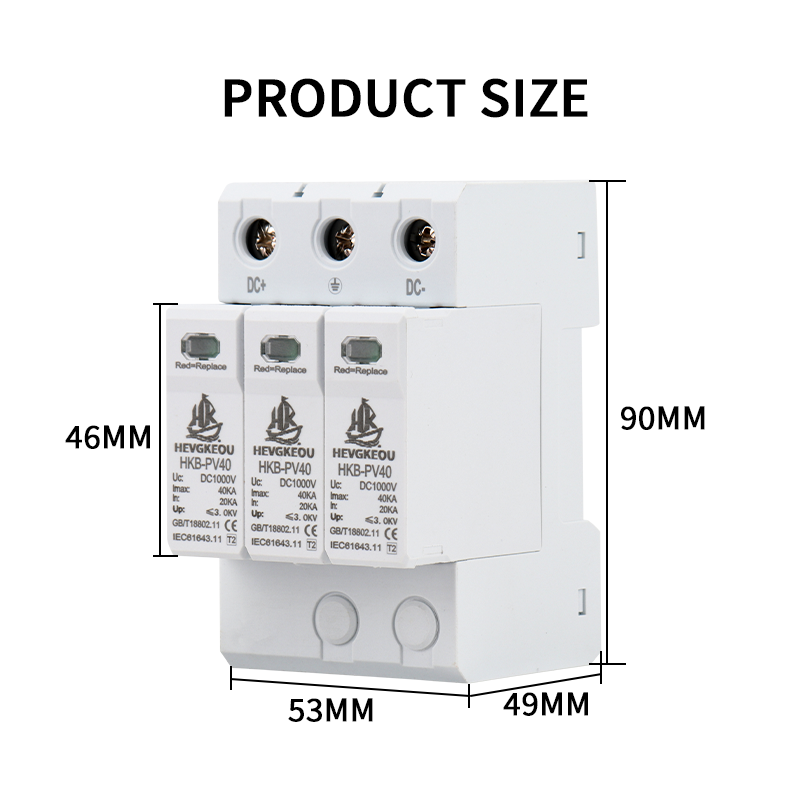

  Dimensions (W x H x D)	54mm x 90mm x 68mm (3 modules)
  Certification	CE
