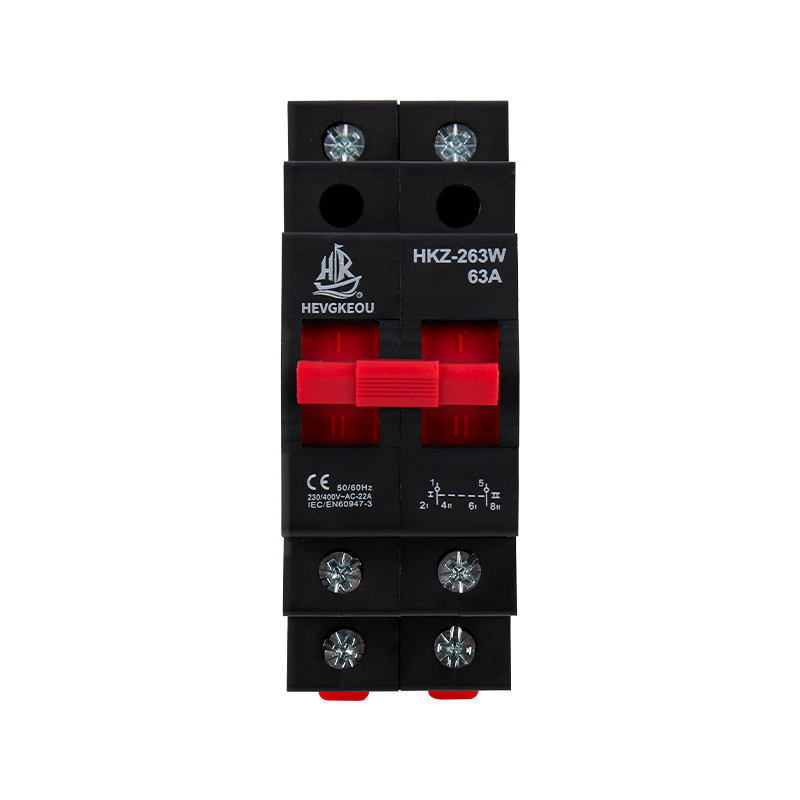

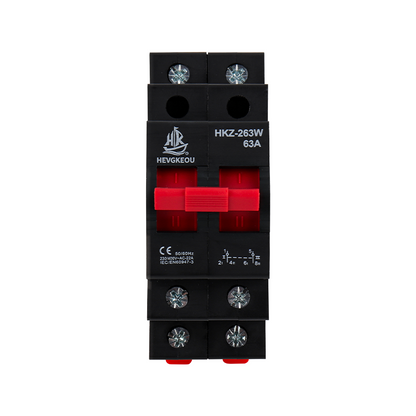

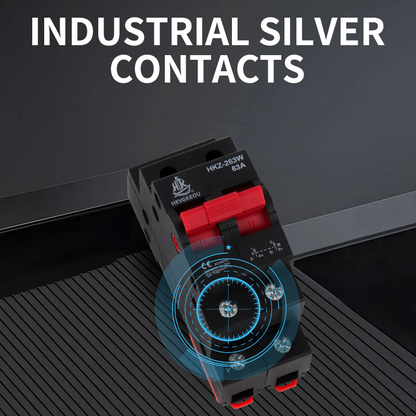

Hkz-263W 2p 63A Double Power Isolation Switch Red/Blue 230VAC 50/60Hz Dual Power Isolator Interrupter CE Certified for Safe Source Selection

Visual Power Switching at Its Simplest - Red for Grid, Blue for Backup

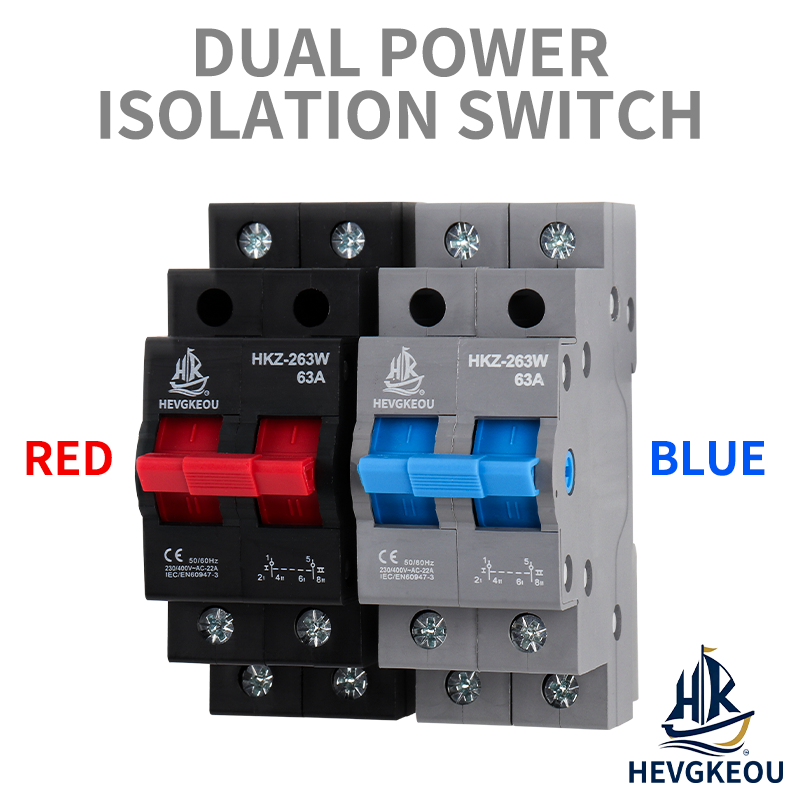

• Color-Coded Visual Indication: Red (Source I) and Blue (Source II) positions for instant source identification - no more guessing.

• 2P 63A Capacity: Switches Live + Neutral for complete isolation - ideal for homes, workshops, and light commercial use.

• 230VAC 50/60Hz: Perfect for standard single-phase systems worldwide.

• Dual Power Isolation: Safely select between Grid, Generator, or Solar Inverter.

• CE Certified: Meets European safety and quality standards.

• DIN Rail Mount: Fits standard 35mm rails for quick, professional installation.



  Clarity and safety go hand in hand when manually switching between power sources. The HEVGKEOU HKZ-263W 2P 63A Double Power Isolation Switch is designed to eliminate confusion with its intuitive red and blue color-coded positions - red for Source I (Grid) and blue for Source II (Generator or Solar Inverter).

  This isn't just a switch; it's a visual safety tool. At a glance, you can confirm which source is powering your load, reducing the risk of operational errors. Rated for 63 Amps at 230VAC, it's the perfect choice for residential backup systems, workshop power selection, or light commercial applications where reliability and clarity are paramount.

  The 2-pole (2P) design ensures complete isolation by switching both Live and Neutral, meeting safety requirements for standby systems. With CE certification, you can trust that this isolator meets stringent European standards for quality and safety.

  Whether you're an electrician installing a new system or a homeowner managing backup power, the HKZ-263W delivers the perfect blend of simplicity, safety, and performance.




  Technical Specifications

  Specification	Detail
  Brand/Model	HEVGKEOU HKZ-263W
  Type	Double Power Isolation Switch / Manual Transfer Switch
  Rated Current	63 Amps
  Rated Voltage	230V AC (50/60Hz)
  Poles	2P (Switches Live + Neutral)
  Positions	I (Red) - 0 - II (Blue)
  Color Coding	Red = Source I (Grid) / Blue = Source II (Generator/Solar)
  Mechanical Interlock	Yes - prevents simultaneous connection
  Mounting	35mm DIN Rail
  Electrical Life	> 1,500 operations
  Mechanical Life	> 10,000 operations
  Operating Temperature	-25°C to +55°C
  Enclosure Material	Flame-retardant PC (UL94 V-0)
  Protection Rating	IP20 (finger-safe)
  Certification	CE

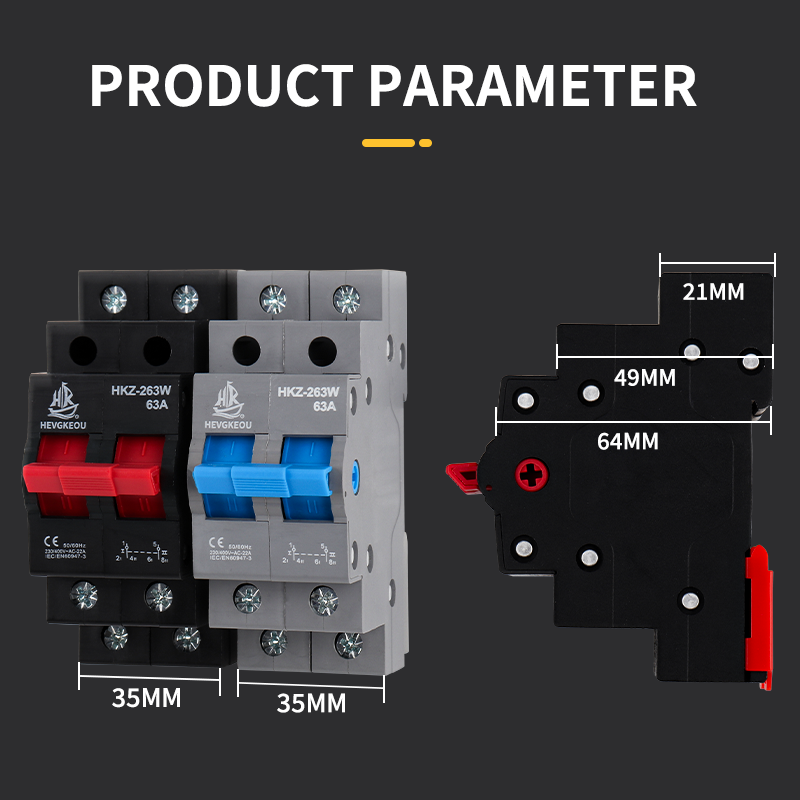

  Width	3 modules (54mm)
  Color	Gray housing with Red/Blue indicators
