Single Phase Automatic Transfer Switch (ATS) | 2P 40A-100A Dual Power Changeover for 110V/230V Uninterrupted Supply

⚡ Reliable Dual Power Switching for Single-Phase Systems

• Wide Amperage Range: Available in 40A, 63A, 80A, or 100A to match your load.

• Dual Voltage Compatible: Works with both 110V and 230V AC systems (50/60Hz).

• 2P Safety Design: Switches Live + Neutral for complete isolation.

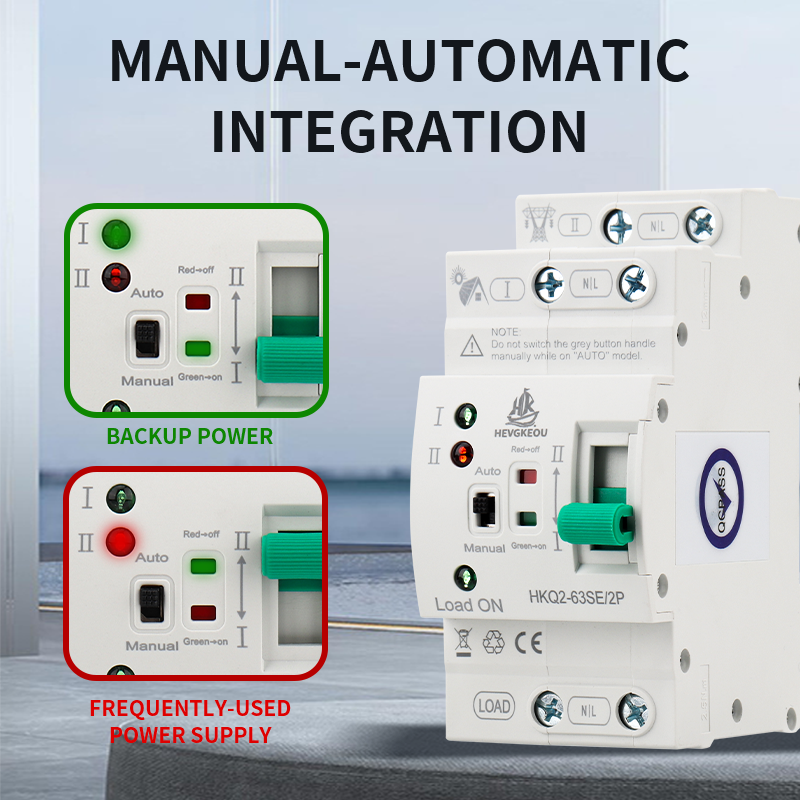

• Automatic Operation: No manual intervention needed during power outages.

• DIN Rail Mount: Easy installation in standard distribution boards.

  Technical Specifications

  Specification	80A Model
  Model Code	ATS-2P-80A
  Rated Current	80 Amps
  Rated Voltage	110V/230V AC (50/60Hz)
  Poles	2P (L + N)
  Mounting	35mm DIN Rail
  Transfer Time	≤ 3 seconds
  Delay Settings	Adjustable (0-30s)
  Terminal Capacity	Up to 50mm²
  Operating Temp	-5°C to +40°C
  Certification	CE
