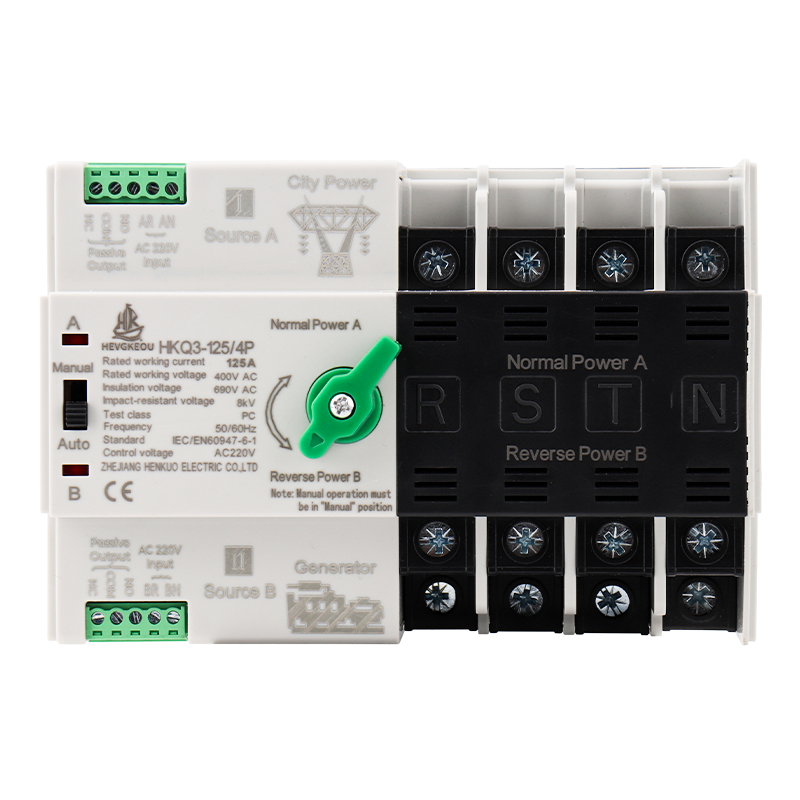

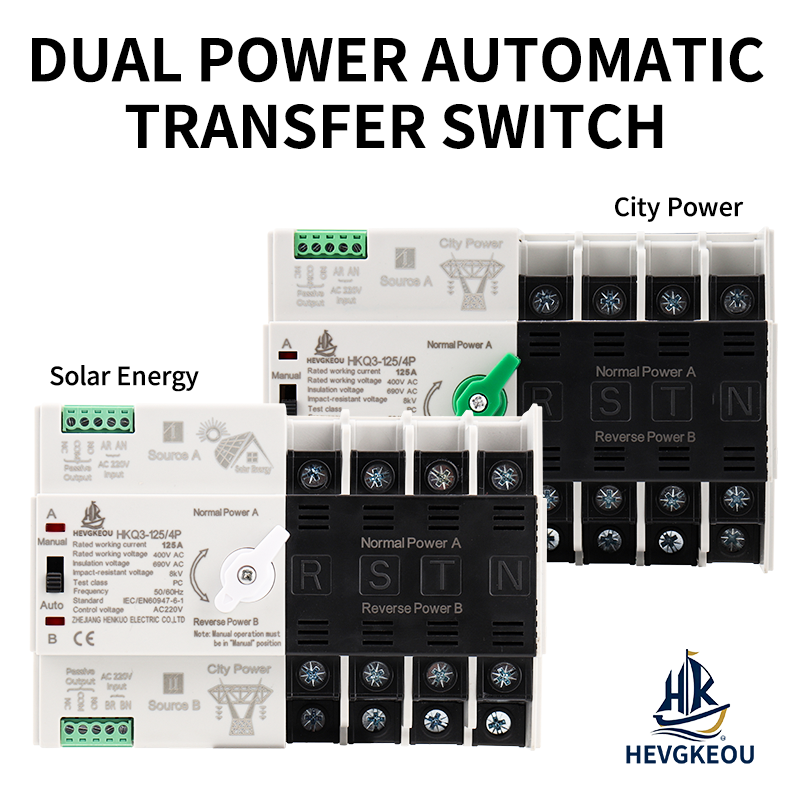

Solar ATS 125A 4P Automatic Transfer Switch | PV System & Inverter Dual Power Selector | 3-Phase DIN Rail Energy Changeover

☀️ Smart Energy Switching for Advanced Solar & Grid Systems

• 4-Pole Design: Complete isolation for 3-Phase (L1, L2, L3, N) systems.

• 125A High Capacity: Handles heavy loads for residential or commercial setups.

• PV Optimized: Seamlessly switch between Solar/Inverter, City Power, and Generator.

• DIN Rail Mount: Neat, professional installation in any standard distribution board.

  Technical Specifications

  Specification	Detail
  Model	ATS-SOLAR-125A-4P
  Type	Automatic Transfer Switch (ATS)
  Rated Current (In)	125 Amps
  Rated Voltage (Ue)	230 AC (3-Phase, 50/60Hz)
  Poles	4P (4 Poles, switching L1, L2, L3, N)
  Mounting	35mm DIN Rail (IEC/EN 60715)
  Transfer Time	< 5 seconds (configurable depending on controller)
  Electrical Life	> 1,500 operations
  Mechanical Life	> 5,000 operations
  Terminal Capacity	50mm² (Suitable for thick copper cables)
  Degree of Protection	IP20 (Finger-safe terminals)
