Surge Protection Device (SPD) | AC Power Line Surge Arrester | Shield Home & Industrial Equipment from Lightning & Power Surges | Type 2 Protection

⚡ Protect Your Valuable Equipment from Deadly Power Surges

• Comprehensive Protection: Shields against lightning strikes, switching surges, and grid fluctuations.

• Multi-Application: Perfect for homes, offices, industrial facilities, and solar systems.

• High Surge Capacity: Dissipates massive transient energy safely to ground.

• DIN Rail Mount: Easy installation in standard distribution boards.

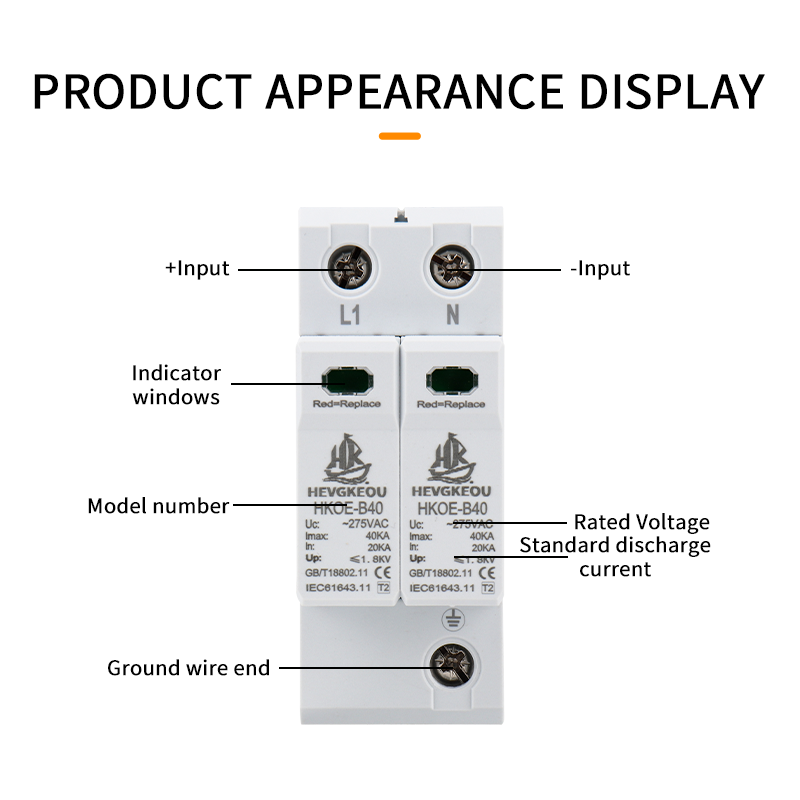

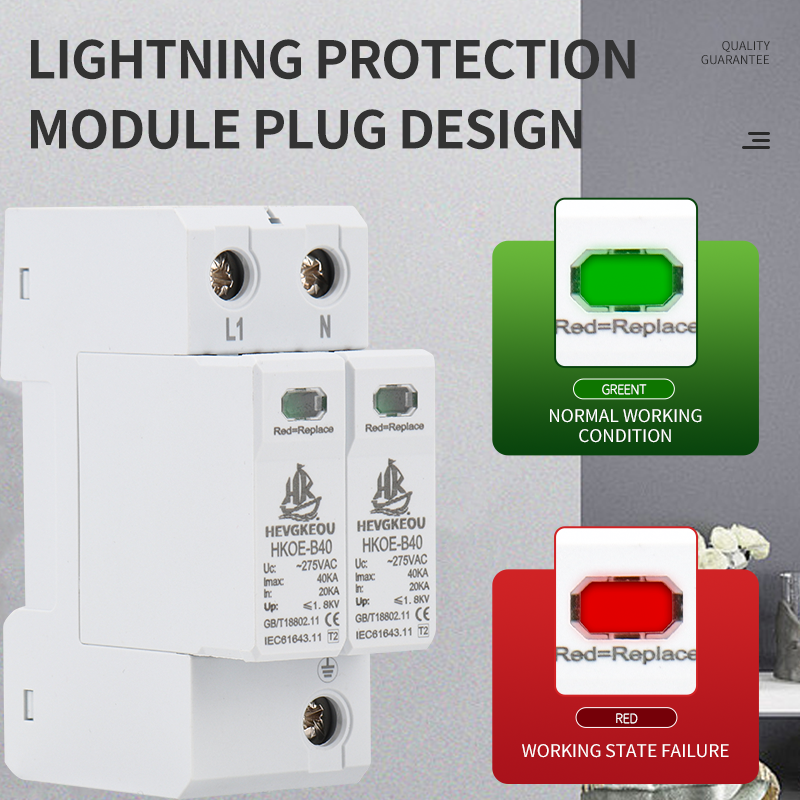

• Visual Status Indicator: Know at a glance if protection is active.

  Technical Specifications

  Specification	Type 2 Model
  Model	SPD
  Type	Type 2 (8/20µs)
  Max Continuous Voltage (Uc)	275V / 440V (select)
  Nominal Discharge Current (In)	20kA (8/20µs)
  Max Discharge Current (Imax)	40kA (8/20µs)
  Impulse Current (Iimp)	N/A
  Voltage Protection Level (Up)	≤ 1.5kV
  Response Time	< 25 ns
  Poles	2P,
  Mounting	35mm DIN Rail
  Terminal Capacity	Up to 35mm²
  Status Indication	Visual (Green/Red)
  Remote Signaling	Optional
  Operating Temp	-40°C to +80°C
  Certification	CE
  Enclosure Rating	IP20
